BodyGuardian™ Remote Cardiac Monitor portfolio for physicians

BodyGuardian™ Remote Cardiac Monitor portfolio for physicians

Preventice is now Boston Scientific Cardiac Diagnostics

The Holter monitors that meet patients’ needs for comfort and convenience and satisfy physicians’ requirements for timely, robust data.


Our monitors

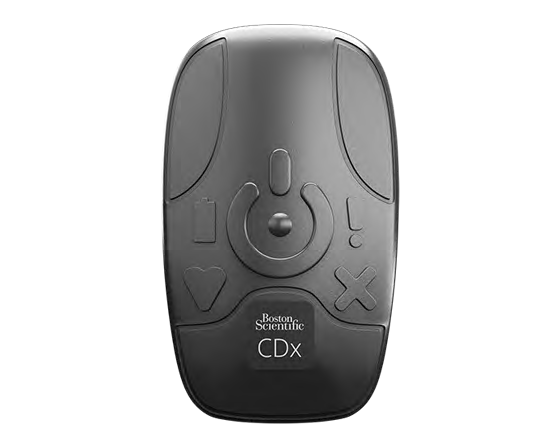

BodyGuardian MINI Remote cardiac monitor

BodyGuardian MINI Remote cardiac monitor

The small, waterproof cardiac monitor with long battery life that patients are more likely to wear for the full monitoring period.

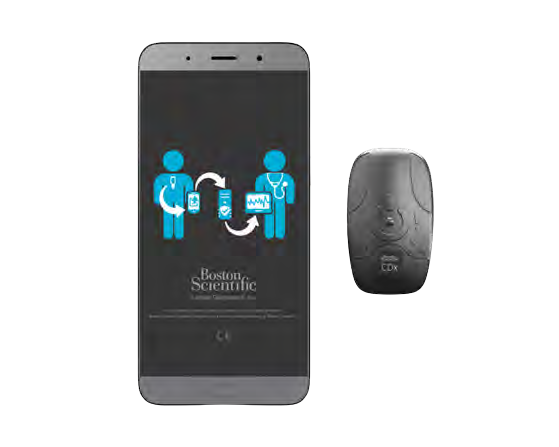

BodyGuardian MINI PLUS Remote Cardiac Monitor

BodyGuardian MINI PLUS Remote Cardiac Monitor

The MCT (mobile cardiac telemetry) monitor that continuously transmits beat-to-beat data to alert physicians of arrhythmia incidents in near-realtime.


Compare BodyGuardian monitors

Determine which device is right for your patient.

Features BodyGuardian MINI BodyGuardian MINI PLUS
Morphological templates Yes No
Stream every beat to the cloud No Yes

Transmit events upon triggered

recording

No Yes

Customers can access all

rhythms and beats via ECG

Insight

Yes MCT only
Wifi Yes Yes
Instructional videos Yes Yes
Language translation Yes Yes
Battery life Up to 16 days Up to 7 days

BodyGuardian MINI and BodyGuardian MINI PLUS both offer all of these additional features:

  • One device for staff training and one for inventory
  • Fast report delivery, office upload, and ER data access
  • Remote service transition without patient visit
  • P-wave focus and ventricula arrhythmias detection
  • Afib, PAC, and PVC burden

Technical specifications

Dimensions MINI EL: 59 x 30 x 13 mm, MINI: 48 x 29 x 12 mm
Weight MINI EL: 22 grams, MINI: 18 grams

Ingress protection rating

IP67

Operating temperature

+0°C to +45°C
Operating humidity Relative humidity range of 15% to 90%, noncondensing
Storage temperature

(Based on battery specifications): 1 month storage:

-20°C to +60°C / 3 month storage: -20°C to +45 °C / 12

month storage: -20°C to +25°C



Battery charger power

requirement

110-240V, 50-60Hz
Battery capacity 450 mAh
Battery characteristics 3.7 V Rechargeable Li-ion battery
Memory capacity 4.0 GB (30+ days of monitoring data)
Bluetooth Yes

Sampling rate 125/250/500/1000 Hz
Digital resolution 24 bits

Channels

Single or Multiple (3 leads)

Input Dynamic range

[-400, 400] mV
Input Offset dynamic [-400, 400] mV



Sample rate 25/100 Hz
Digital resolution 12 bits



CAUTION:

The law restricts these devices to sale by or on the order of a physician. Indications, contraindications, warnings, and instructions for use can be found in the product labeling supplied with each device or at  https://manuals.cdx.bostonscientific.com. Products shown for INFORMATION purposes only and may not be approved or for sale in certain countries. This material is not intended for use in France.
