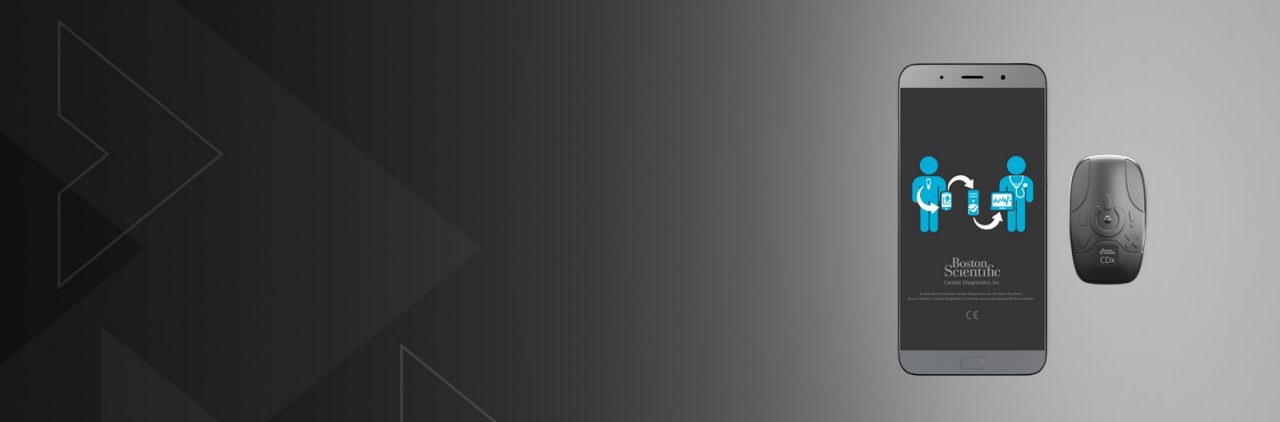

Mobile device with remote monitoring and Preventice BodyGuardian MINI PLUS remote cardiac monitor.

BodyGuardian™ MINI PLUS Remote Cardiac Monitor for physicians

The MCT monitor with near-real-time data.

Preventice is now Boston Scientific Cardiac Diagnostics

Near-real-time data transmission

When patients can sweat, shower, and even swim wearing their cardiac monitor, they’re more likely to comply with doctors’ orders. Near-real-time MCT (mobile cardiac telemetry) means physicians can receive rapid alerts of arrhythmia incidents.


Improved patient compliance

  • Smaller monitor size means greater comfort
  • Skin preparation without abrasion or alcohol
  • Fully waterproof and submersible
  • Repositionable with multiple placement options

Remote monitoring and management

  • Remote home hookup reduces exposure risks to patients, family, and clinical staff
  • Remote clinical evaluation and consultation for greater convenience
  • Remote diagnostic yield with full beat-to-beat data

Technical specifications

Dimensions MINI EL: 59 x 30 x 13 mm, MINI: 48 x 29 x 12 mm
Weight MINI EL: 22 grams, MINI: 18 grams

Ingress protection rating

IP67

Operating temperature

+0°C to +45°C
Operating humidity Relative humidity range of 15% to 90%, noncondensing
Storage temperature

(Based on battery specifications): 1 month storage:

-20°C to +60°C / 3 month storage: -20°C to +45 °C / 12

month storage: -20°C to +25°C



Battery charger power

requirement

110-240V, 50-60Hz
Battery capacity 450 mAh
Battery characteristics 3.7 V Rechargeable Li-ion battery
Memory capacity 4.0 GB (30+ days of monitoring data)
Bluetooth Yes

Sampling rate 125/250/500/1000 Hz
Digital resolution 24 bits

Channels

Single or Multiple (3 leads)

Input Dynamic range

[-400, 400] mV
Input Offset dynamic [-400, 400] mV



Sample rate 25/100 Hz
Digital resolution 12 bits



BodyGuardian instructions for use

CAUTION:

The law restricts these devices to sale by or on the order of a physician. Indications, contraindications, warnings, and instructions for use can be found in the product labeling supplied with each device or at  https://manuals.cdx.bostonscientific.com. Products shown for INFORMATION purposes only and may not be approved or for sale in certain countries. This material is not intended for use in France.
