BodyGuardian™ remote cardiac monitors

Discover simple, actionable, and efficient remote ECG monitoring.

Data without compromise. Life without limitations.

The BodyGuardian portfolio of continuous Holter and mobile cardiac telemetry (MCT) monitors gives clinicians timely data with high diagnostic yields and provides patients with the comfort and flexibility they need to live life uninterrupted.

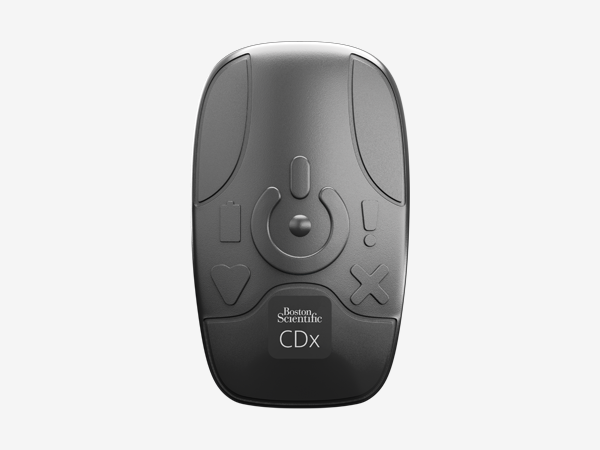

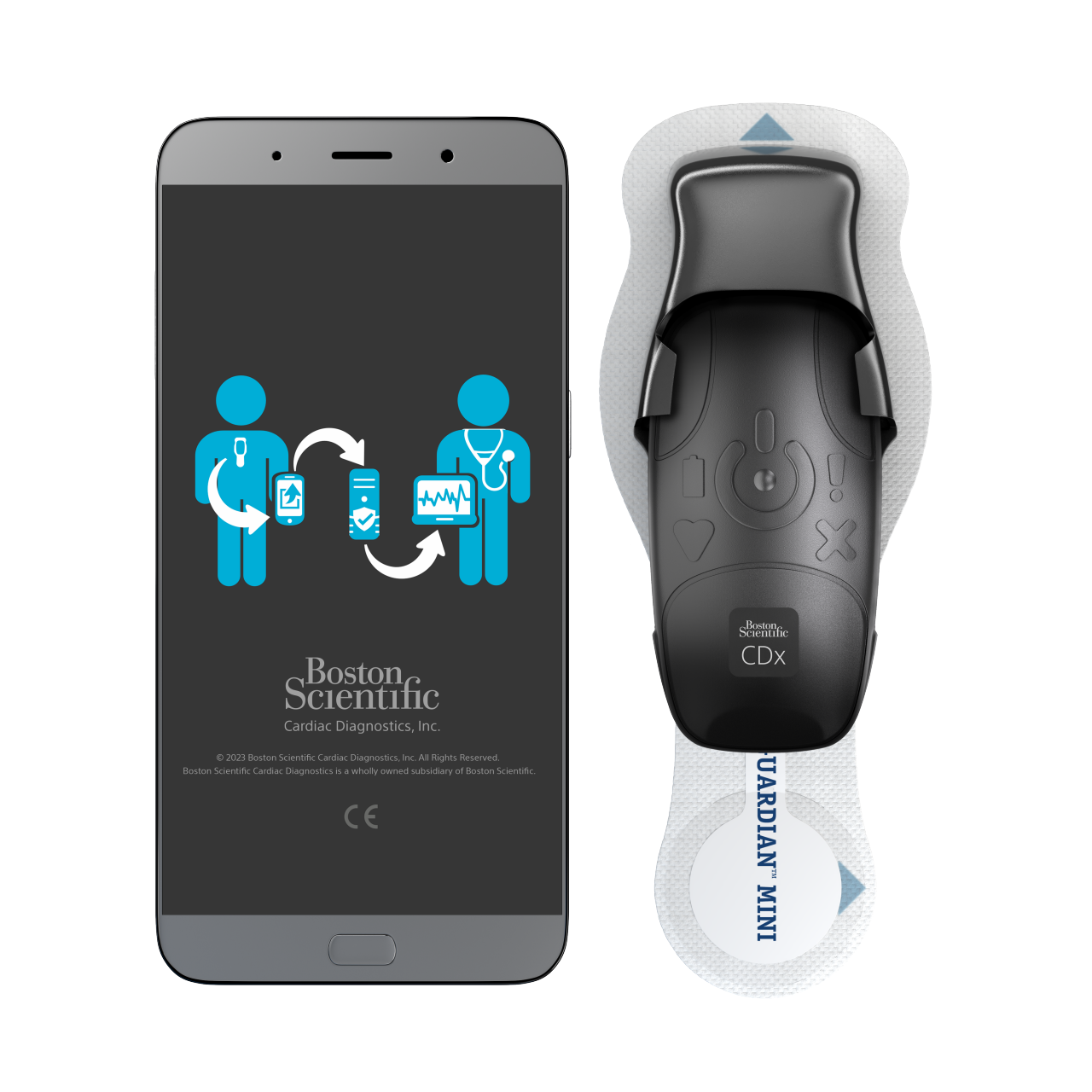

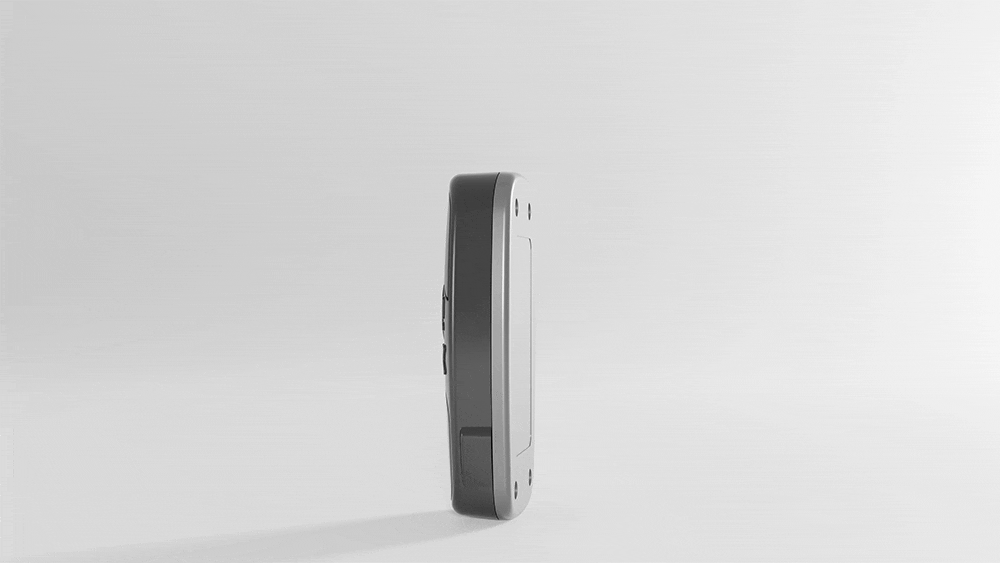

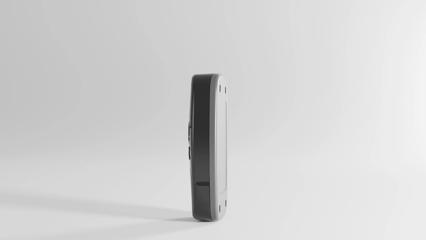

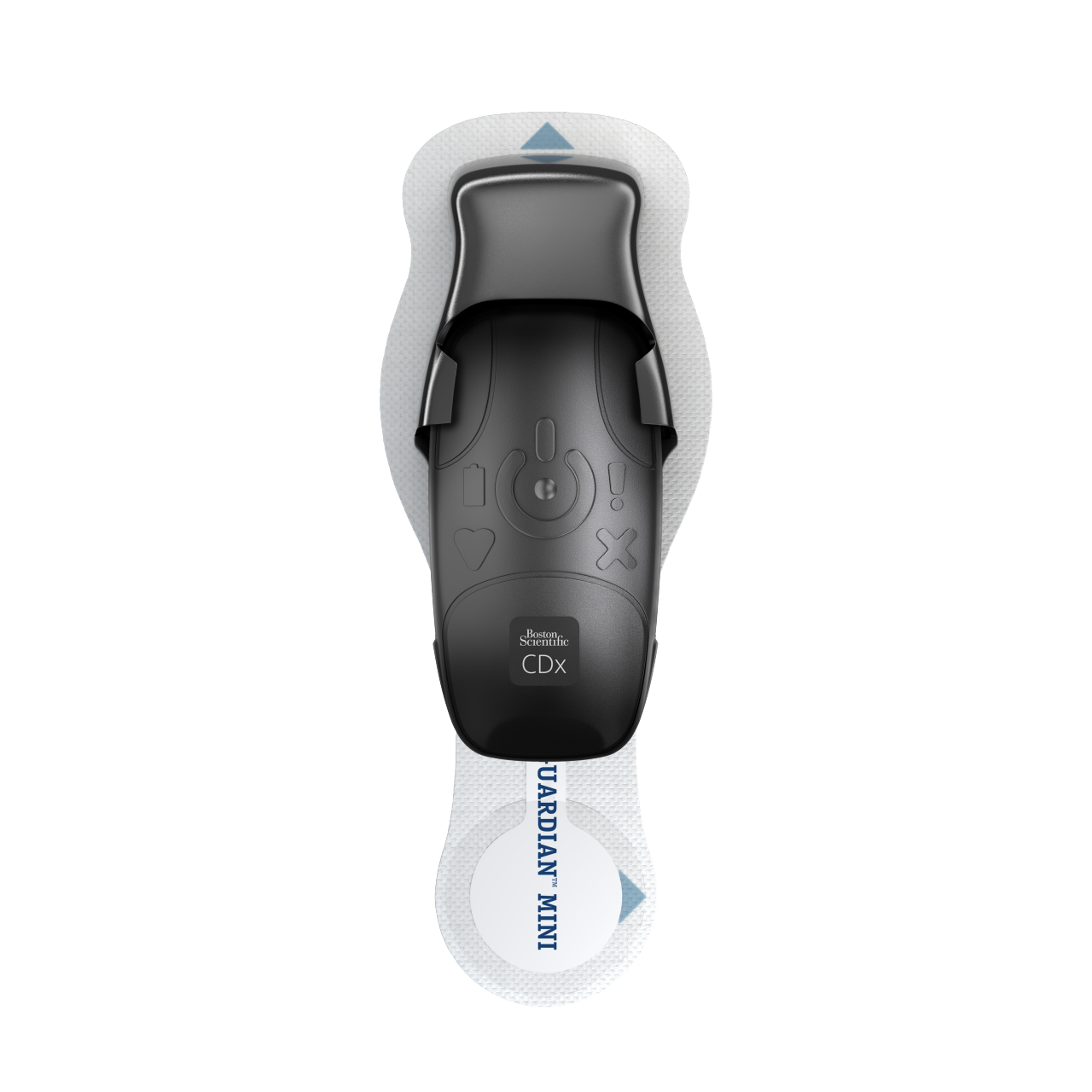

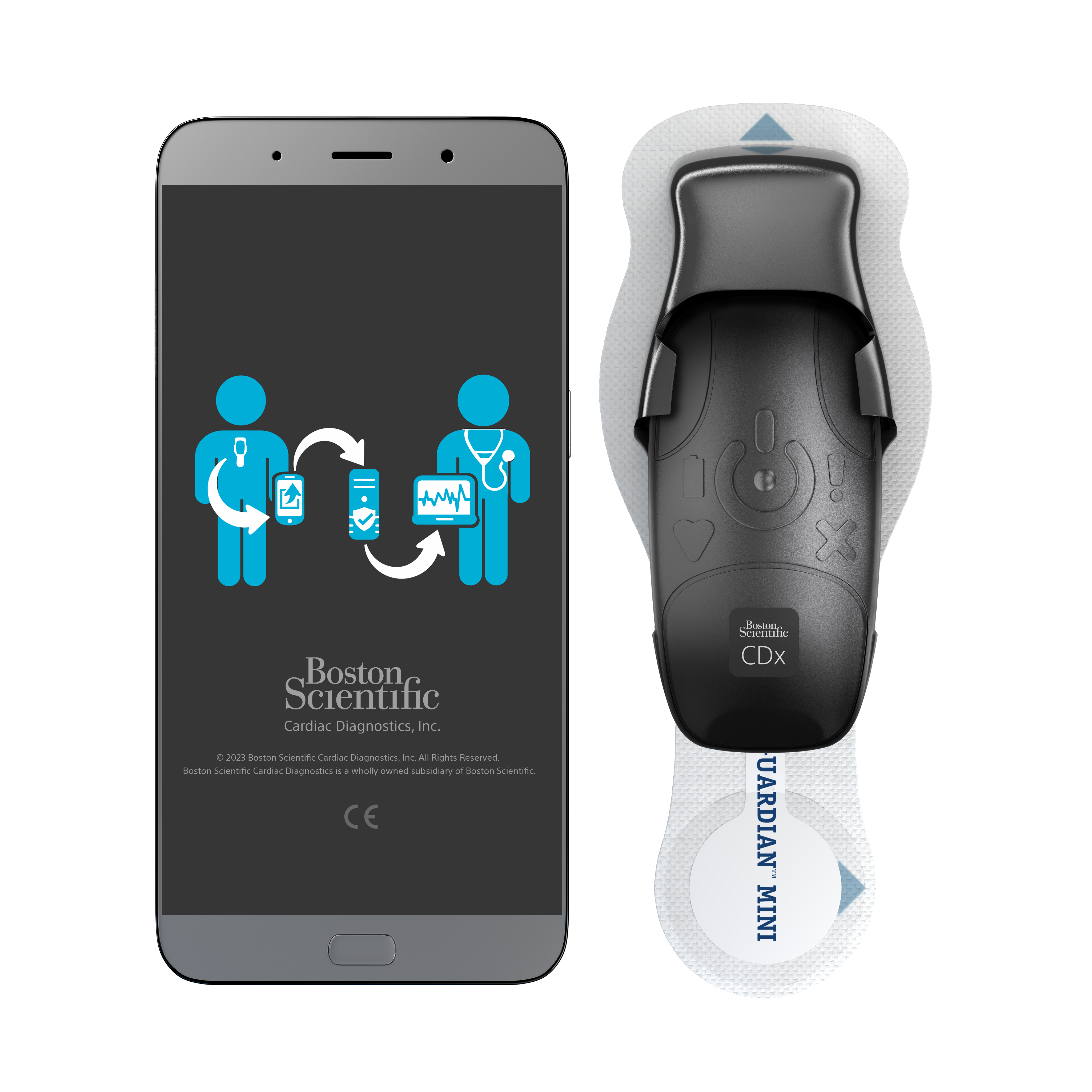

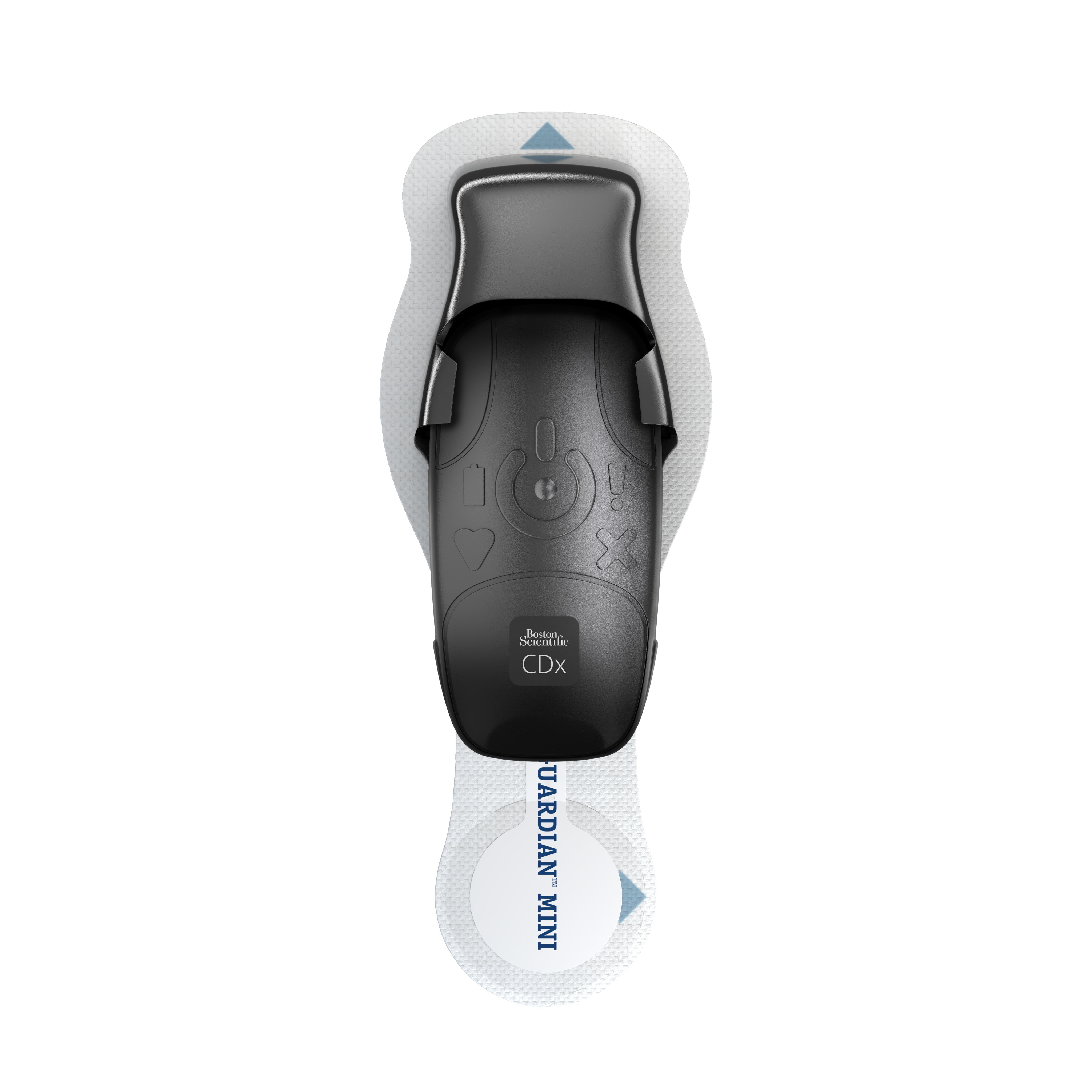

Our mobile heart monitors

Characteristics
DimensionsMINI EL: 59 x 30 x 13 mm, MINI: 48 x 29 x 12 mm
WeightMINI EL: 22 grams, MINI: 18 grams
Ingress protection ratingIP67
Operating temperature+0°C to +45°C
Operating humidityRelative humidity range of 15% to 90%, non-condensing
Storage temperature(Based on battery specifications): 1 month storage: -20°C to +60°C / 3 month storage: -20°C to +45 °C / 12 month storage: -20°C to +25°C
Battery charger power requirement110-240V, 50-60Hz
Battery capacity450 mAh
Battery characteristics3.7 V Rechargeable Li-ion battery
Memory capacity4.0 GB (30+ days of monitoring data)
BluetoothYes
ECG
Sampling rate125/250/500/1000 Hz
Sampling rate
24 bits
Channels Single or Multiple (3 leads)
Input Dynamic range [-400, 400] mV
Input Offset dynamic[-400, 400] mV
3D accelerometer
Sample rate25/100 Hz
Digital resolution12 bit

What are you missing with short-term cardiac monitoring?

In a retrospective analysis, atrial fibrillation (AF) statistics were noted for 25,000+ patients who had undergone AECG monitoring for at least 28 days with the BodyGuardian system in MCT mode. Of the patients with AF:1


The cardiac algorithm with deep learning built in

BeatLogic™ is a cloud-based artificial intelligence (AI) platform that incorporates deep learning for timely, accurate ECG data and quick, confident patient care.

Four circles showing >99.7% beat detection, >97% sinus sensitivity, >97% VT sensitivity, and >96% AFib sensitivity.

The complete beat-to-beat story at your fingertips

Featuring robust data and actionable reports, the ECG Insight™ system is the only solution offering full disclosure ECG data for MCT and Holter studies.

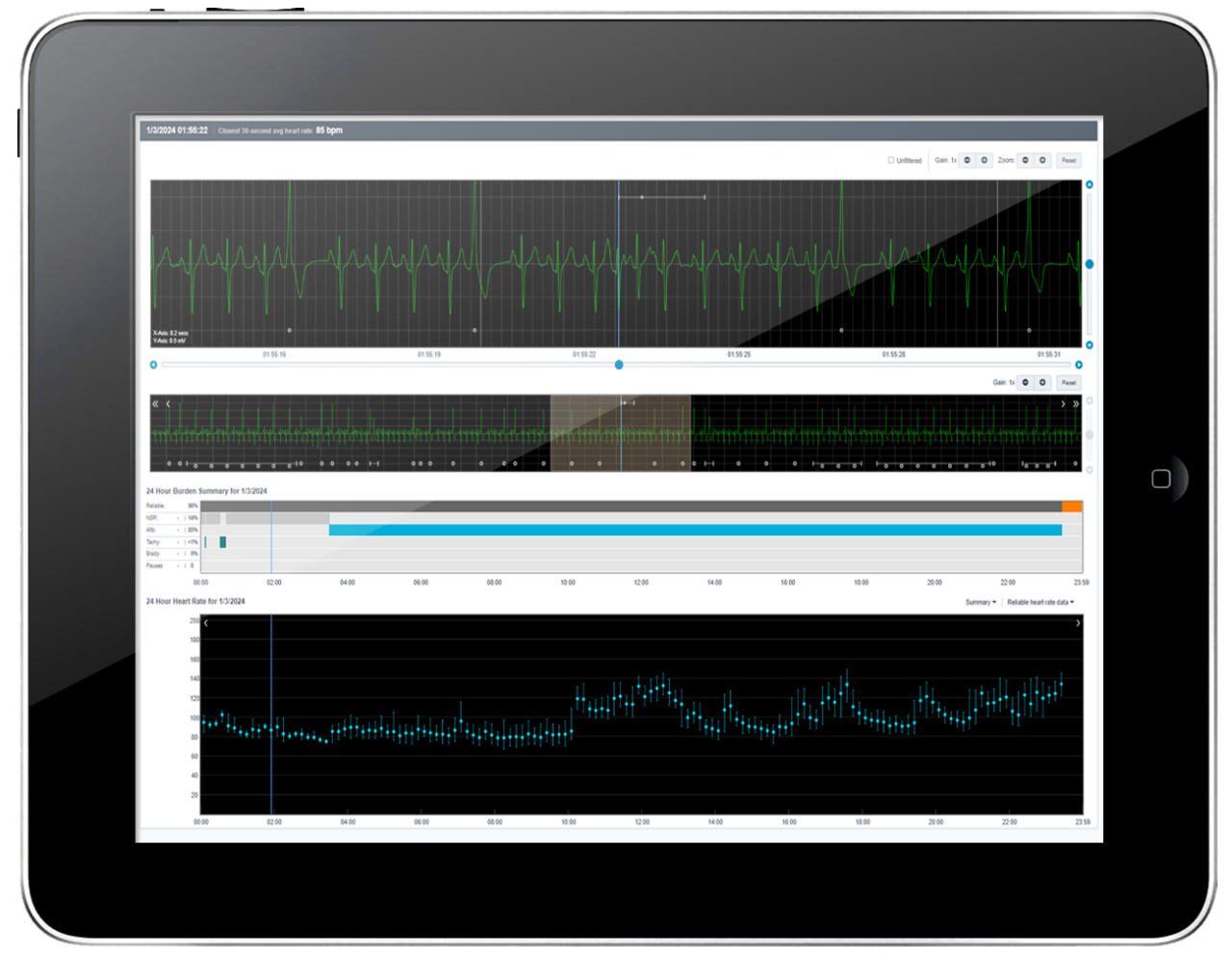

Tablet screen showing heart rhythm data strips in the ECG Insight system.

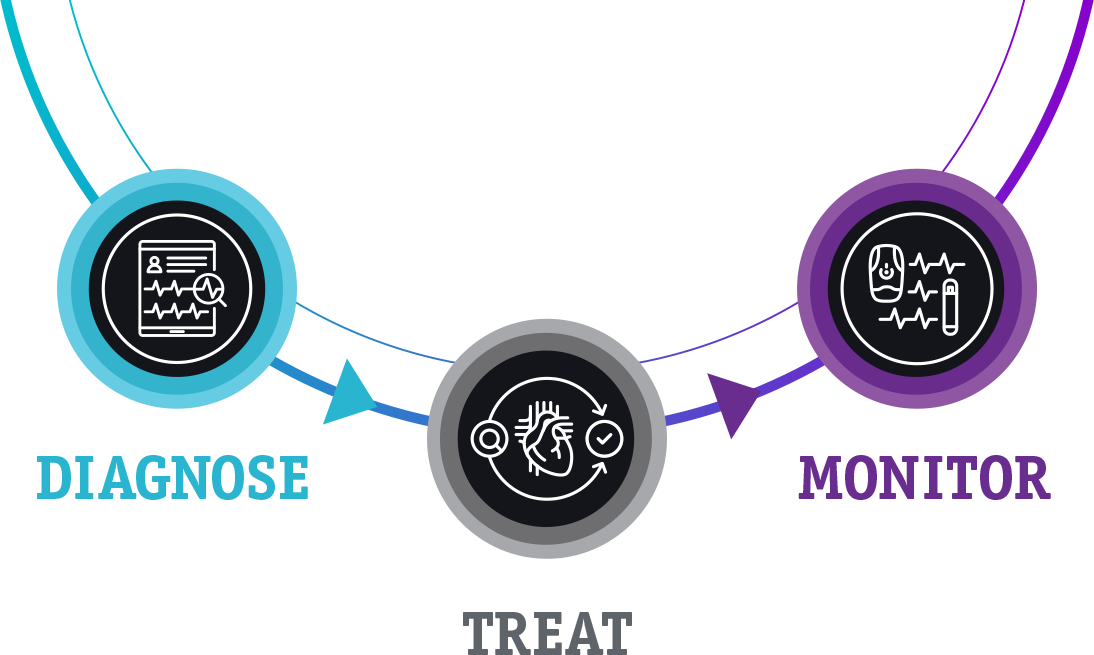

Diagram connecting 3 icons in a semi-circle with the words diagnose, treat, and monitor.

Solutions across the cardiac care continuum

Now you can move seamlessly from symptom to solution with Boston Scientific—the only company offering a full spectrum of technologies to help you diagnose, treat, and monitor cardiac arrhythmia patients.

The Cardiac Diagnostic Solutions portfolio includes Boston Scientific’s LUX-DxTM ICM Systems

Want more information?

Connect with a sales representative to learn more about the BodyGuardian family of remote cardiac monitors.

Stay up to date

Sign up to receive periodic emails featuring product information, clinical data, physician perspectives, and more.

*Pediatric patients above 10kg (22lbs)

References

1. Mehta, P., Teplitzky, B., McRoberts, M., Mittal, S. Impact of study duration on detection of atrial fibrillation in patients undergoing ambulatory external ECG monitoring. Poster presented at Heart Rhythm 40th Scientific Sessions May 8 11, 2019, San Francisco. Heart Rhythm Journal, Vol. 16(5),
