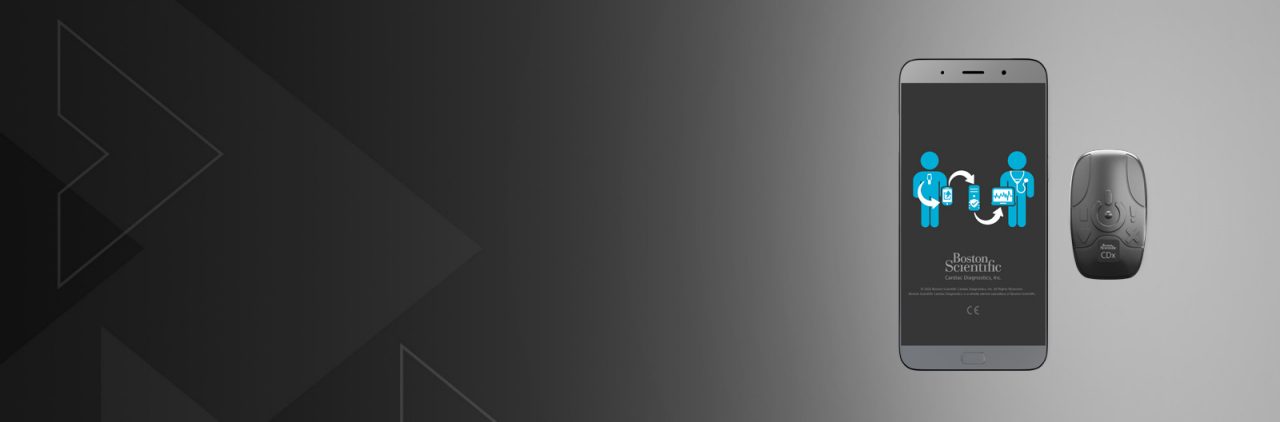

Mobile device with remote monitoring and Preventice BodyGuardian MINI PLUS remote cardiac monitor.

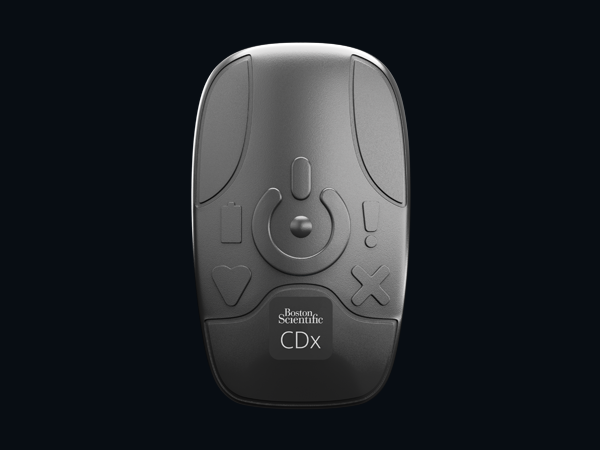

BodyGuardian™ MINI PLUS Remote Cardiac Monitor for physicians

The MCT monitor with near-real-time data.

Preventice is now Boston Scientific Cardiac Diagnostics

FDA approved for children and adults. See more details

Near-real-time data transmission

When patients can sweat, shower, and even swim wearing their cardiac monitor, they’re more likely to comply with doctors’ orders. Near-real-time MCT (mobile cardiac telemetry) means physicians can receive rapid alerts of arrhythmia incidents.

Improved patient compliance

  • Smaller monitor size means greater comfort
  • Skin preparation without abrasion or alcohol
  • Fully waterproof and submersible
  • Repositionable with multiple placement options

Want more information?

Remote beat-to-beat ECG monitoring

Cloud-based ECG Insight™ offers you near-real-time data during and after monitoring.

  • See all rhythms in near-real-time while the patient is wearing the heart monitor
  • Receive actionable, timely information via remote telemetry
  • Improve patient compliance and enable timely follow-up care

Remote monitoring and management

  • Remote home hookup reduces exposure risks to patients, family, and clinical staff
  • Remote clinical evaluation and consultation for greater convenience
  • Remote diagnostic yield with full beat-to-beat data

Dimensions MINI EL: 59 x 30 x 13 mm, MINI: 48 x 29 x 12 mm
Weight MINI EL: 22 grams, MINI: 18 grams
Ingress protection rating IP67
Operating temperature +0°C to +45°C
Operating humidity Relative humidity range of 15% to 90%, non-condensing
Storage temperature (Based on battery specifications): 1-month storage: -20°C to +60°C / 3-month storage: -20°C to +45 °C / 12-month storage: -20°C to +25°C
Battery charger power requirement 110-240V, 50-60Hz
Battery capacity 450 mAh
Battery characteristics 3.7 V Rechargeable Li-ion battery
Memory capacity 4.0 GB (30+ days of monitoring data)
Bluetooth Yes
Sampling rate 125/250/500/1000 Hz
Sampling rate
24 bits
Channels Single or Multiple (3 leads)
Input Dynamic range [-400, 400] mV
Input Offset dynamic [-400, 400] mV
3D accelerometer
Sample rate 25/100 Hz
Digital resolution 12 bit

Simple patient instructions

Plain-language manual gives patients the confidence to set up a cardiac monitor delivered to the home.

510K clearance information

BodyGuardian MINI has received 510k clearance - K182030 and CE mark for pediatric and adult patients.

Boston Scientific’s LUX-Dx™ ICM System

For remote monitoring beyond 30 days, Boston Scientific’s LUX-Dx ICM System offers long-term cardiac monitoring up to 3 years.

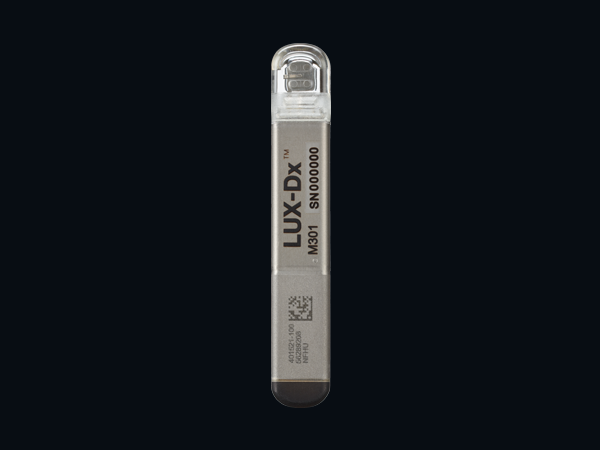

Boston Scientific LUX-Dx ICM.

Need more help?

Get in touch with the customer support team at Boston Scientific Cardiac Diagnostics.
