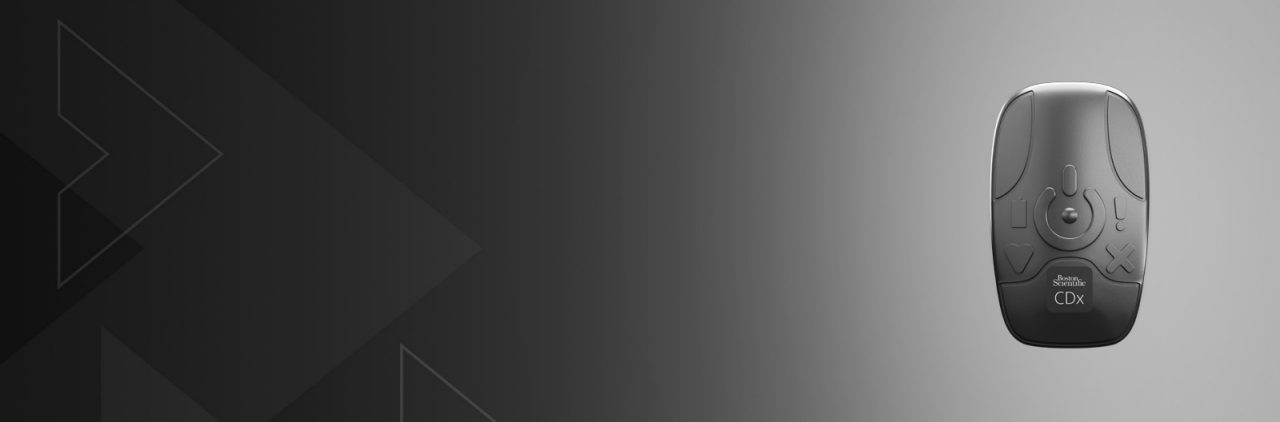

BodyGuardian MINI remote cardiac monitor.

BodyGuardian™ MINI Continuous Holter Monitor

A cardiac Holter monitor that can be worn for up to 15 days.

The BodyGuardian MINI is a user-friendly, easy-to-wear remote cardiac monitor that lets patients live life uninterrupted and gives clinicians the high-quality data and integration solutions they need for accurate, confident decision making.

Integrate BodyGuardian cardiac monitors into your practice.

Clinical benefits

Healthcare professional listening to patient and taking notes.

Designed with your practice and patients in mind

Icon of a heart.

Full disclosure cardiac monitoring

Near real-time, beat-to-beat data for faster clinical decision making when it matters most

Icon of paper with arrow pointing up.

Data integration

Efficient, customizable integration solutions for a variety of platforms and workflows

Icon of an adult and pediatric patient.

Pediatrics approved

FDA cleared for adults and pediatric patients above 10kg (22lbs)

Icon of a battery.

Long battery life

The fully rechargeable battery lasts up to 15 days in Holter mode

Icon of a cog with arrows around it.

Single and multi-channel

Offers flexibility for specific vector views and certain patient populations

Icon showing a heart rhythm.

High-quality P-wave tracings

Vertical placement provides clear visibility into the P, QRS, and T wave phases of beats, enhancing arrhythmia detection

Patient with heart icon.

Patient comfort and compliance

Fully waterproof and submersible with multiple adhesive and placement options so patients can live life uninterrupted

Learn more about BodyGuardian


The cardiac algorithm with deep learning built in

The BodyGuardian MINI is powered by BeatLogic™, a cloud-based artificial intelligence (AI) platform that incorporates deep learning for superior ECG interpretation and faster clinical decision making.

Four circles showing >99.7% beat detection, >97% sinus sensitivity, >97% VT sensitivity, and >96% AFib sensitivity.

The complete beat-to-beat story at your fingertips

The ECG Insight™ cloud-based system is the only solution for complete access to all ECG data for MCT and Holter studies.

Tablet screen showing heart rhythm data strips in the ECG Insight system.
  • Available for both connected and disconnected Holter

  • Full access to all the ECG data in the study

  • Visible onset/offset of arrhythmia

  • View a calendar of all the events listed in the end of service (EOS) report

Actionable, user-friendly reports

BodyGuardian MINI offers a comprehensive first page summary, which allows for immediate and actionable diagnoses for your patients.

1 icon.

The Report and Demographics section identifies the patient, physician(s), practice, and study date and times. It also includes three indications for monitoring. 

2 icon.

The Physician Comments section provides an area to add comments. 

3 icon.

The Preliminary Findings includes a contextual summation of what the patient  experienced during the entire monitoring period. Technicians can edit the default preliminary findings to include their own assessment as needed. 

BodyGuardian MINI long-term Holter report.

Sign up for a full BodyGuardian MINI Holter sample report


Dr. Ziad Issa

“The devices come with different types of patches to accommodate patients' preferences. Patients can wear the patches for five days without changing them. They can shower, swim, and sleep with them. Patients’ satisfaction with the types of patches is very good.”

Ziad Issa, MD
Prairie Heart Institute of Illinois
Executive Director of Cardiac Electrophysiology

Patient benefits

Patient wearing a BodyGuardian MINI remote cardiac monitor while golfing.

Created for patient comfort and compliance

Icon of BodyGuardian MINI remote cardiac monitor.

Easy to place and reposition

No skin abrasion or alcohol required for application, multiple placement options, repositionable

Icon of water droplet.

Waterproof and showerproof

Truly waterproof and fully submersible continuous Holter monitor

Icon of an adhesive strip.

An adhesive for all skin types

Active wear strip, sensitive skin strip, bridge, and lead wire options with single or multi-channel detection

Icon of a battery.

Staying power

The fully rechargeable battery lasts up to 15 days in Holter mode

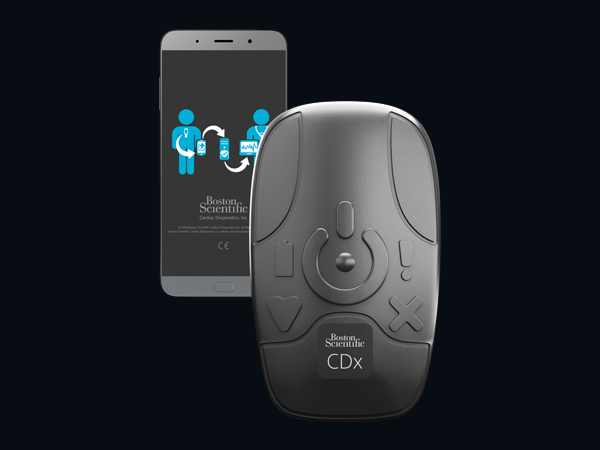

BodyGuardian MINI PLUS Remote Cardiac Monitor components: mobile app and monitor.

“It’s done the two most important things—it has given me the green light to do things that I love doing, and it has helped me understand what might not be good for my heart. This information is invaluable.”

Drew, BodyGuardian MINI (Holter) patient

Resources for your patients

Explore a variety of educational materials designed to help patients complete the prescribed BodyGuardian MINI monitoring period, including patient manuals, instructional videos, FAQs, and more.

Characteristics
DimensionsMINI EL: 59 x 30 x 13 mm, MINI: 48 x 29 x 12 mm
WeightMINI EL: 22 grams, MINI: 18 grams
Ingress protection ratingIP67
Operating temperature+0°C to +45°C
Operating humidityRelative humidity range of 15% to 90%, non-condensing
Storage temperature(Based on battery specifications): 1-month storage: -20°C to +60°C / 3-month storage: -20°C to +45 °C / 12-month storage: -20°C to +25°C
Battery charger power requirement110-240V, 50-60Hz
Battery capacity450 mAh
Battery characteristics3.7 V Rechargeable Li-ion battery
Memory capacity4.0 GB (30+ days of monitoring data)
BluetoothYes
ECG
Sampling rate125/250/500/1000 Hz
Sampling rate
24 bits
ChannelsSingle or Multiple (3 leads)
Input Dynamic range[-400, 400] mV
Input Offset dynamic[-400, 400] mV
3D accelerometer
Sample rate25/100 Hz
Digital resolution12 bit

510(k) clearance information

BodyGuardian MINI has received 510(k) clearance - K182030 and CE mark for pediatric and adult patients.

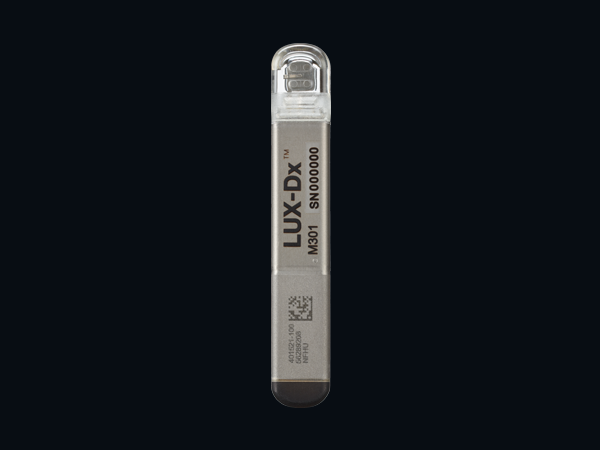

Explore more remote cardiac monitors
